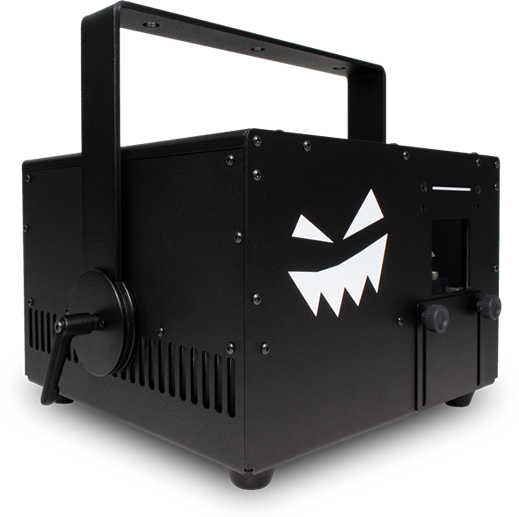

This is the new
KORE
Built from the ground up.
We started from scratch and made it more. More.
More safe.[sic] More exact. More portable. More local. More flexible. More compatible. More economical. |
More safe.[sic]
The new KORE comes with a whole range of safety features, making it the safest to use KORE ever.
|

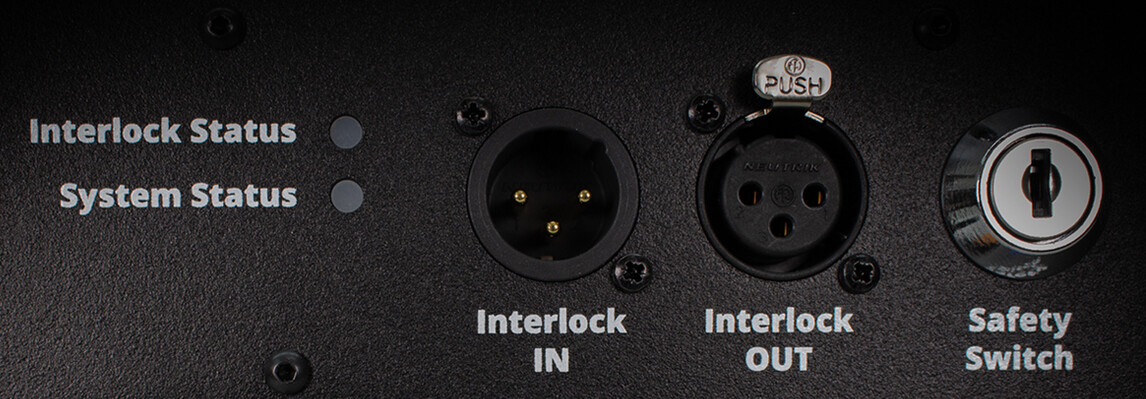

The KORE Advanced Interlock System is one of a kind.
KORE are EN 60825-1 and ÖNORM S 1105 compliant.
More exact.

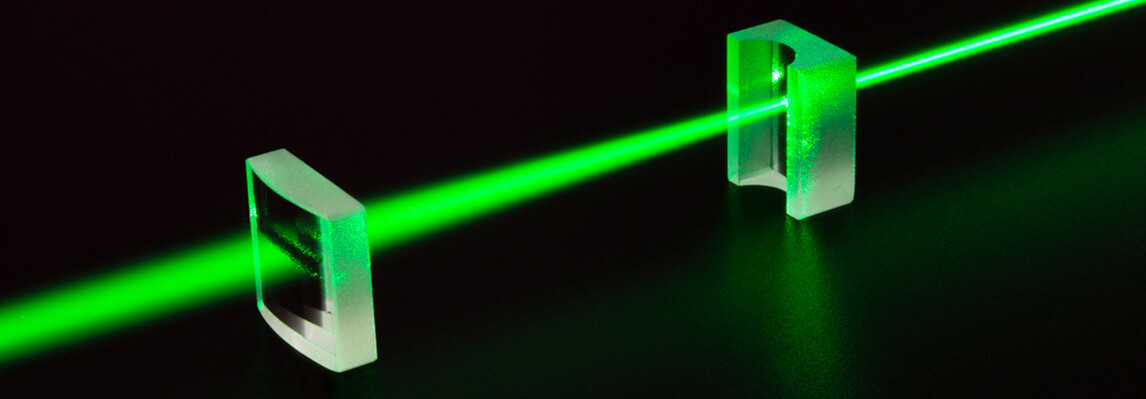

Cylindrical lenses. This should say it all.
|

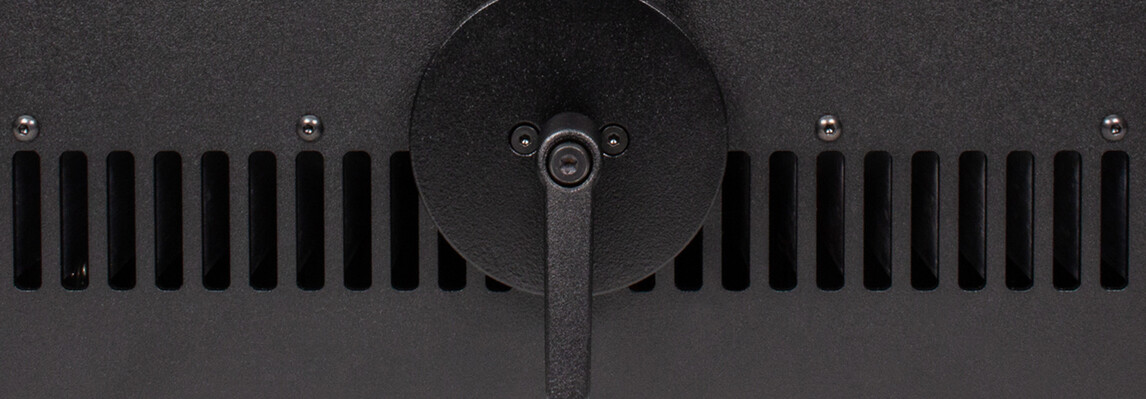

More portable.
Stability doesn’t come with weight. It comes with ingenuity of design.
|

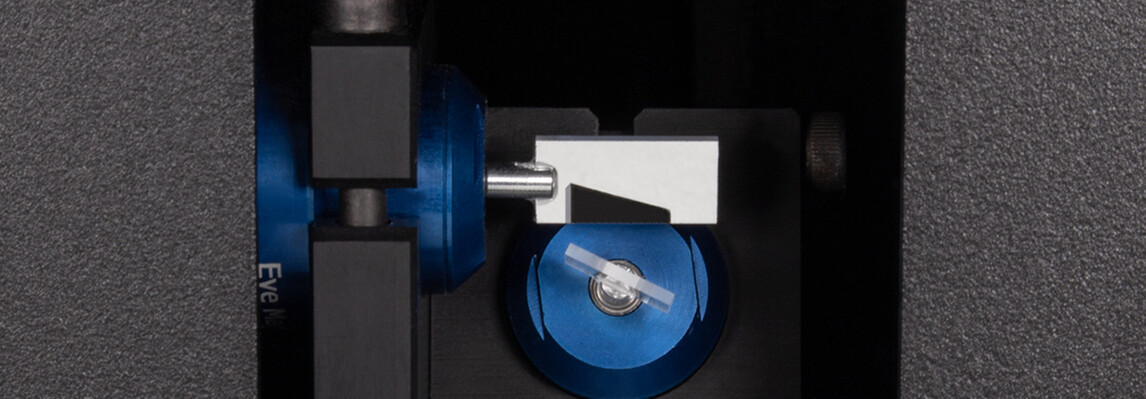

More local.
KORE are developed and manufactured in Austria - European Union. We source all components from as near as possible.
|
More flexible.
Choose between different power classes, different scanners, different control options.
|

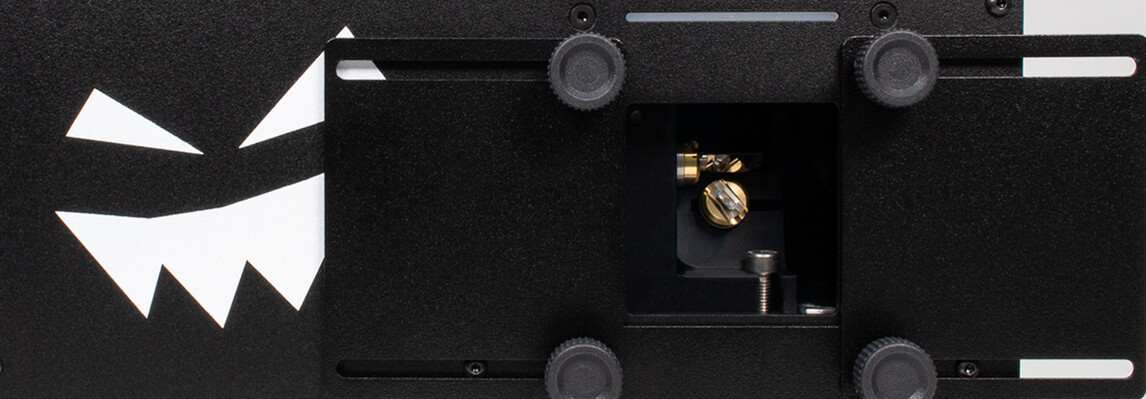

More compatible.
The new KORE is compatible with a wide range of accessories.
|
More economical.
The new KORE comes to stay. Easy to use - easy to maintain.
|
Specification KORE
Models:
KORE 5
KORE 12
KORE 24
Wavelength/
Power:
1700mW 638nm
1650mW 525nm
3000mW 445nm
3600mW 638nm
3300mW 525nm
6000mW 445nm
6000mW 638nm
6600mW 525nm
12000mW 455nm
Divergence/
Beam Size:
< 0.8 mrad (half angle, 1/e²)
4.5 x 2.0 mm (FWHM)
< 0.8 mrad (half angle, 1/e²)
4.5 x 4.5 mm (FWHM)
< 0.8 mrad (half angle, 1/e²)
4.5 x 4.5 mm (FWHM)
Light Sources:
■ 1x Mitsubishi Diode
■ 1x Nichia Diode
■ 1x Nichia Diode
■ 2x Mitsubishi Diodes
■ 2x Nichia Diodes
■ 1x Nichia Diode
■ 3x Mitsubishi Diodes
■ 4x Nichia Diodes
■ 2x Nichia Diodes
Power Consumption:
250W
(all lasers 100%,
full scanner load)
400W (Outdoor version)
(all lasers 100%,
full scanner load, full heating)
250W
(all lasers 100%,
full scanner load)
400W (Outdoor version)
(all lasers 100%,
full scanner load, full heating)
300W
(all lasers 100%,
full scanner load)
450W (Outdoor version)
(all lasers 100%,
full scanner load, full heating)
Specification KORE HD
Models:
KORE 5HD
KORE 12HD
KORE 24HD
Wavelength/
Power:
1400mW 638nm
1650mW 525nm
2650mW 445nm
3400mW 638nm
3300mW 525nm
6000mW 445nm
6800mW 638nm
6600mW 525nm
12000mW 445nm
Divergence/
Beam Size:
< 0.4 mrad (half angle, 1/e²)
4.5 x 4.5 mm (FWHM)
< 0.4 mrad (half angle, 1/e²)
4.5 x 4.5 mm (FWHM)
< 0.4 mrad (half angle, 1/e²)
4.5 x 4.5 mm (FWHM)
Light Sources:
■ 2x Mitsubishi Diodes
■ 1x Nichia Diode
■ 1x Nichia Diode
■ 5x Mitsubishi Diodes
■ 2x Nichia Diodes
■ 1x Nichia Diode
■ 10x Mitsubishi Diodes
■ 2x Nichia Diodes
■ 2x Nichia Diodes
Power Consumption:
250W
(all lasers 100%,
full scanner load)
400W (Outdoor version)
(all lasers 100%,
full scanner load, full heating)
250W
(all lasers 100%,
full scanner load)
400W (Outdoor version)
(all lasers 100%,
full scanner load, full heating)
300W
(all lasers 100%,
full scanner load)
450W (Outdoor version)
(all lasers 100%,
full scanner load, full heating)
Electronics:
ColorDRIVE Influenced Custom Drivers
Proprietary Digital Scanfail Safety
Continuous Temperature Monitoring
Laser Emission LED Strip for Perfect Visibility
Temperature Controlled Laser Module
Heating Capabilities for extra low Temperatures (with Outdoor Upgrade)
LED Indicator for Over/Under Temperature
Safety:
New Developed Scanfail Safety
Housing Interlock
Safety-Eye
Precision Bracket Fastening System
Masking Plates (up to 3-Way)
Safety Key Switch
Laser Emission LED Strip for Perfect Visibility
EN 60825-1 and ÖNORM S 1105 compliant

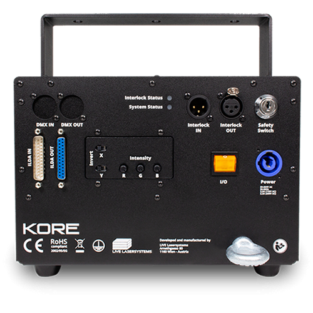

Control:
ILDA
Version
R, G, B Intensity Knobs
X/Y Invert Switches
Fully Complies to ILDA Standard
ILDA Daisy-Chaining

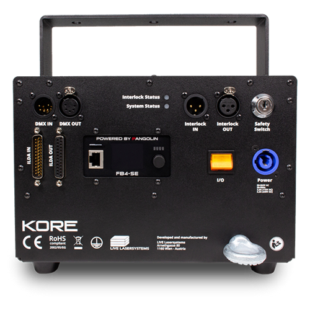

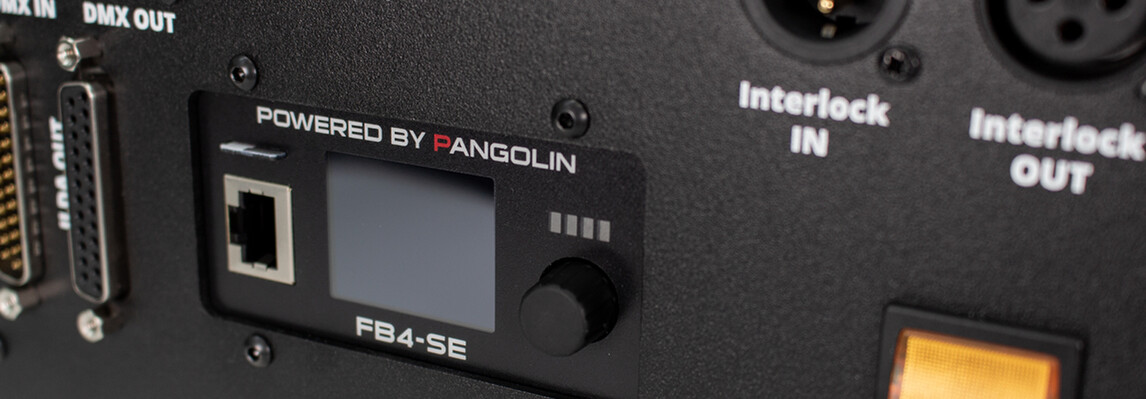

FB4 MAX
Version
Network Control
ILDA Control
DMX Control
ArtNet Control
Timecode Control
StandAlone Control
SD Card
Geometric Correction
Color Adjustment
Scanning:
EMS-6000
35kpps (8° ILDA)
Analogue Amps
EMS-8000 (optional)
60kpps (8° ILDA)
Digital Amps
F-Theta & Pincushion Correction
All scanners are made by EyeMagic in Greece, European Union.
Optics:
Low Beam Divergence due to Cylindrical Lenses
Beam Profile Consistent Across all Color Sources
High Efficiency Mirrors and Dichroic Filters
Custom Designed Stable Optic Holders
Mechanics:
Dust Resistant Design
Separated Cooling Compartment
Temperature Controlled Silent Fans
Incl. Fan Stop
Fall-Proven Safety-Eye

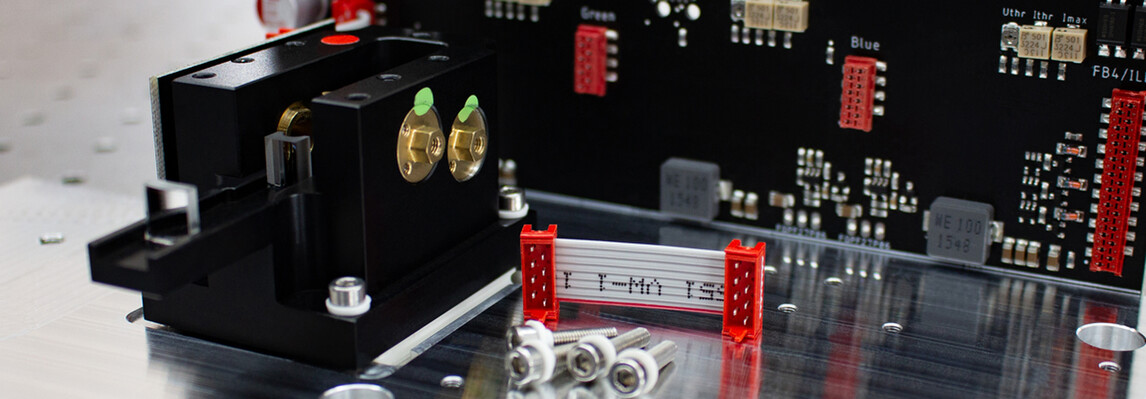

Easy to Maintain Design
Operation Temperature:
5°C - 40°C
(all KORE in standard version, non condensing)
-10°C - 40°C
(all KORE with outdoor upgrade)
Outdoor Upgrade:
KORE Outdoor Upgrade:
(available for all KORE laser systems)
Heater Module
Conformal Coating of all Electronics
Waterproof Fans
KORE Custom Outdoor Fabric Rain Cover
Dimensions/
Weight:
305 x 335 x 270mm
(L x W x H)
incl. Handles, Bracket, Safety-Eye, Masking Plates
9.0 - 10.8kg
Depends on Version
Included Accessories:
Available Accessories:
Downloads:
Images
Buy
Contact us for your personal quote:
+43 (0) 1 944 2883
We are happy to assist you in choosing the right configuration for your application.
Accessories
KORE Accessories

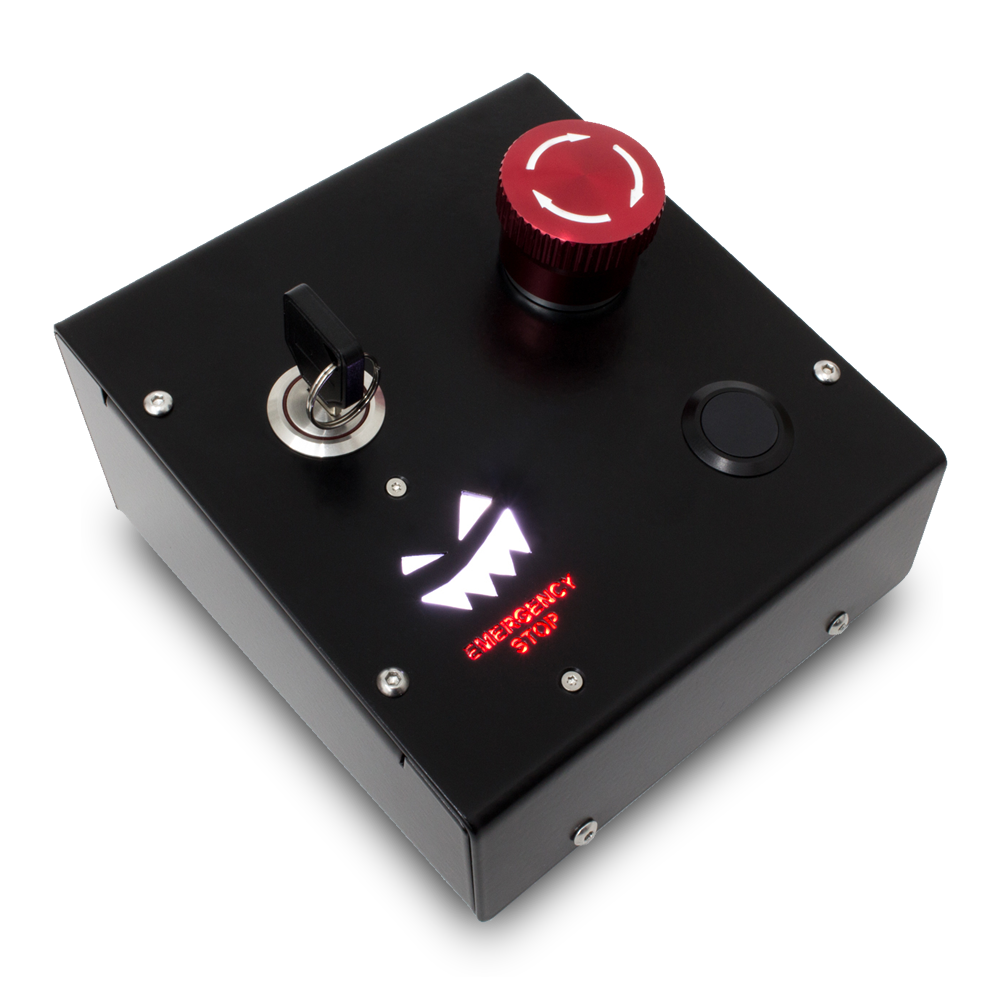

Emergency Stop Box for any KORE laser system. Compatible to the Advanced Interlock System (AIS).
(MwSt. excl.)
200,00 €
KORE Accessories

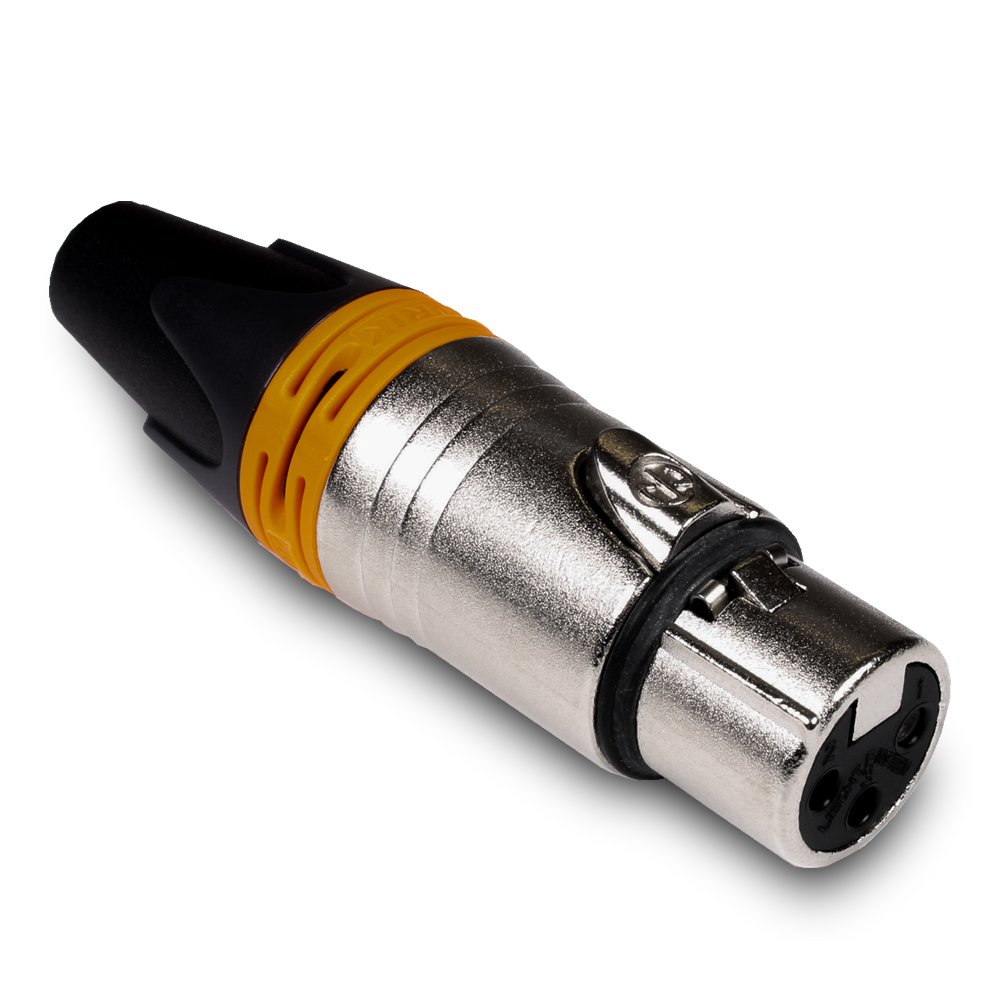

Advanced Interlock System Bridging Adapter for KORE usage without emergency stop box.
(MwSt. excl.)
20,00 €
KORE Accessories

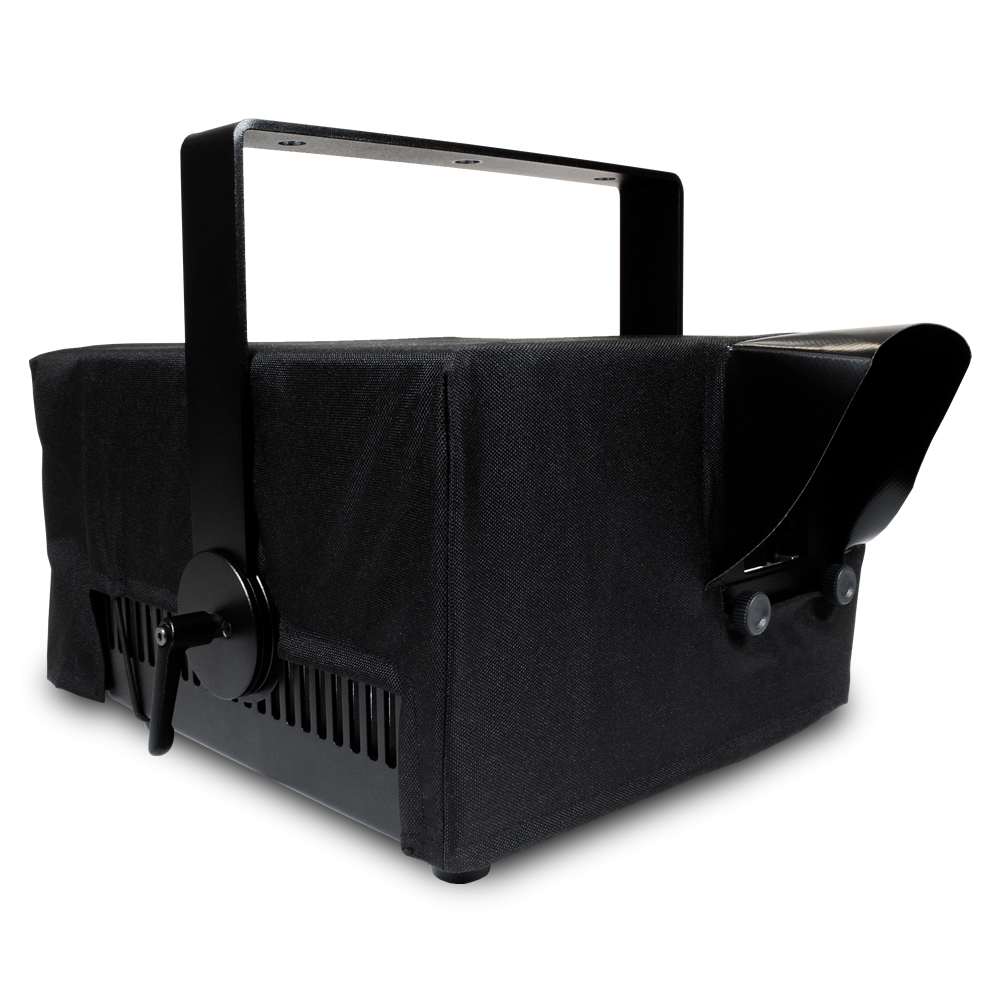

Rain Cover custom designed to fit any KORE laser system.
(MwSt. excl.)
150,00 €
KORE Accessories

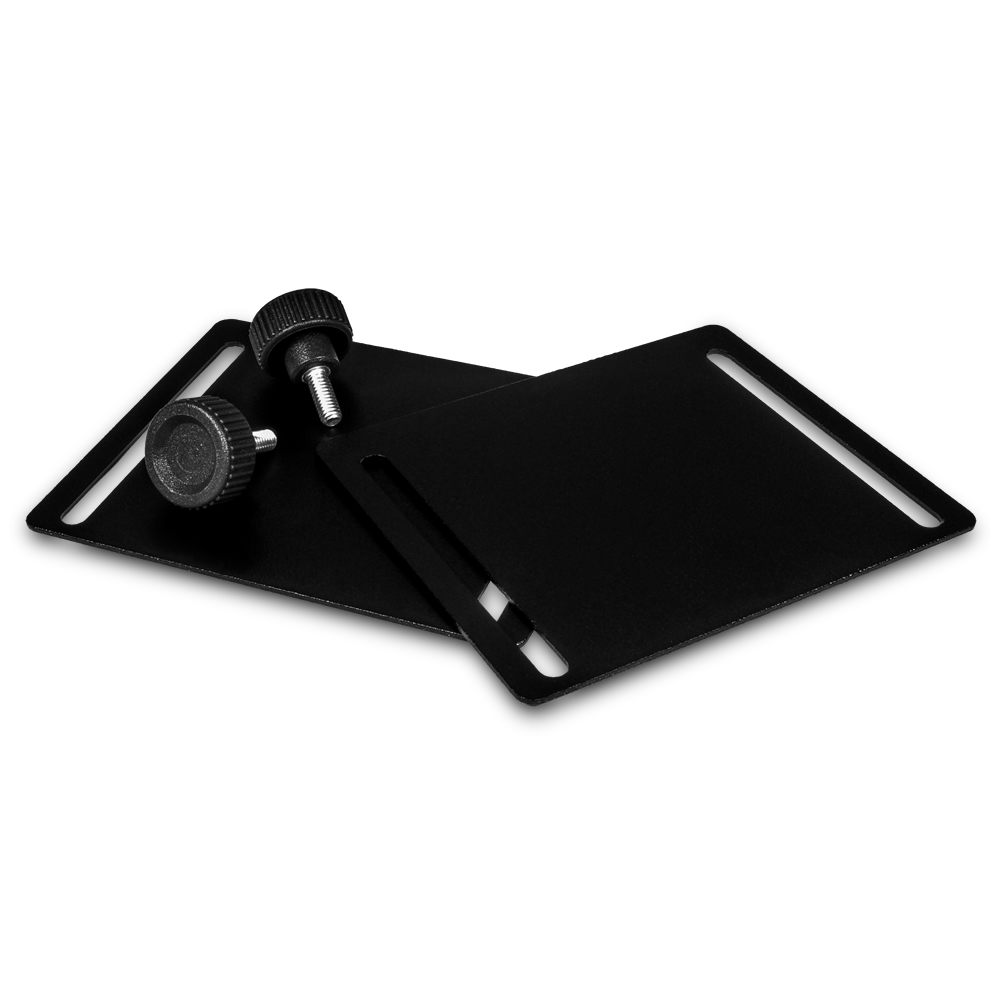

Additional masking plates for up to 3-way output masking of a KORE laser projector.
(MwSt. excl.)
35,00 €
KORE Accessories

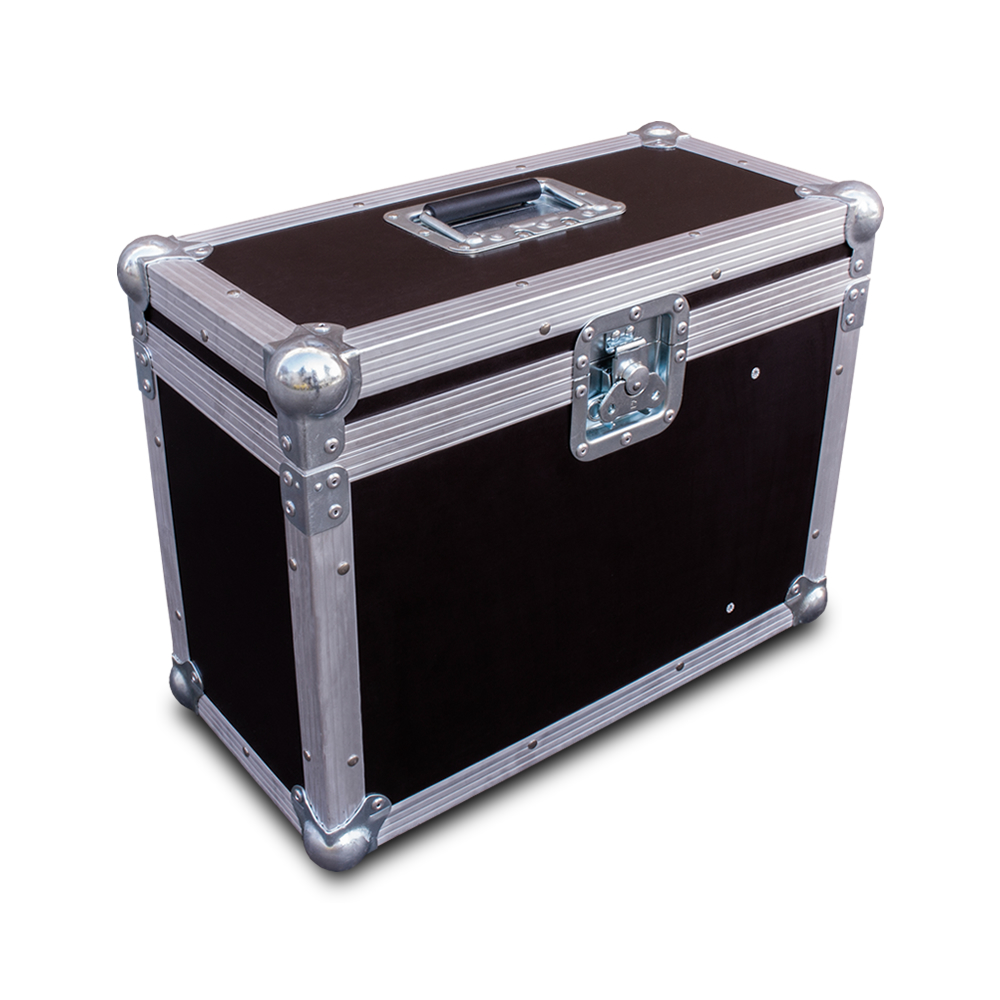

Custom flightcase for any KORE laser projector incl. accessories.
(MwSt. excl.)
220,00 €
KORE Accessories

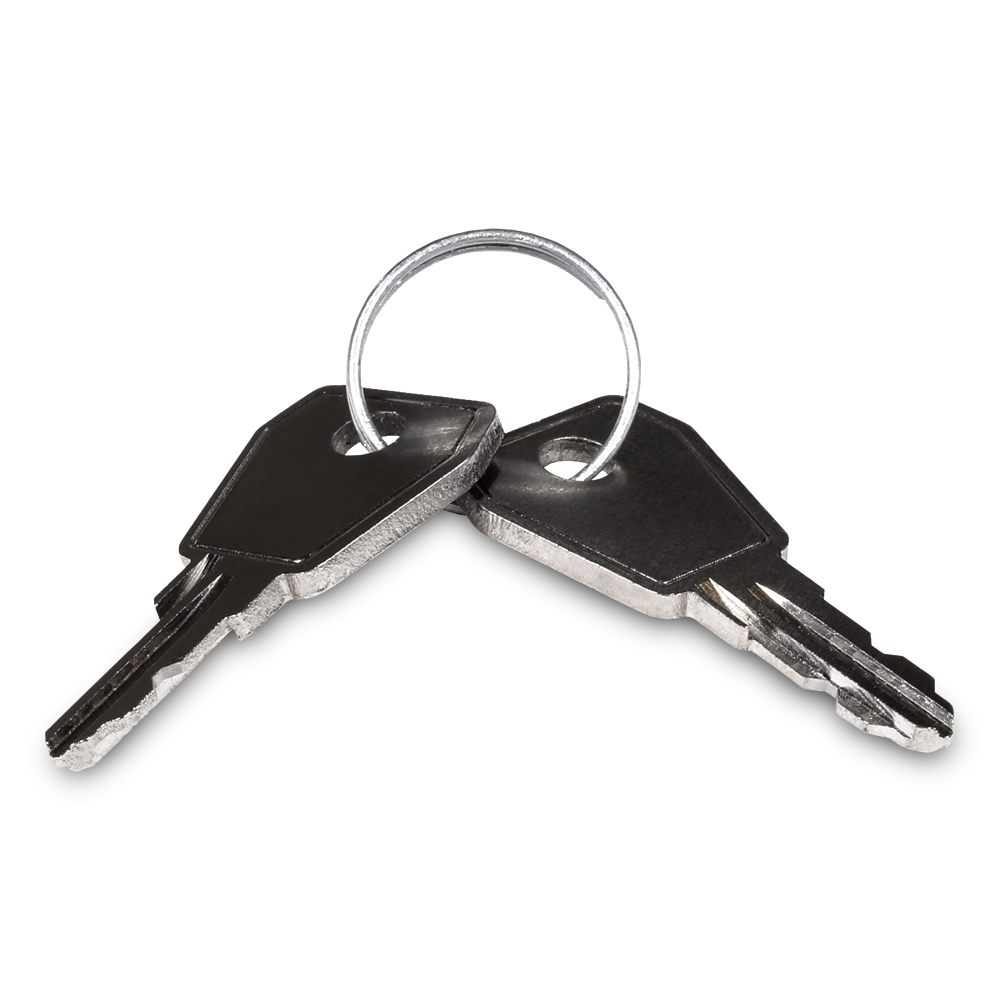

Spare key for safety switch on any KORE laser projector.
(MwSt. excl.)
20,00 €
KORE Accessories

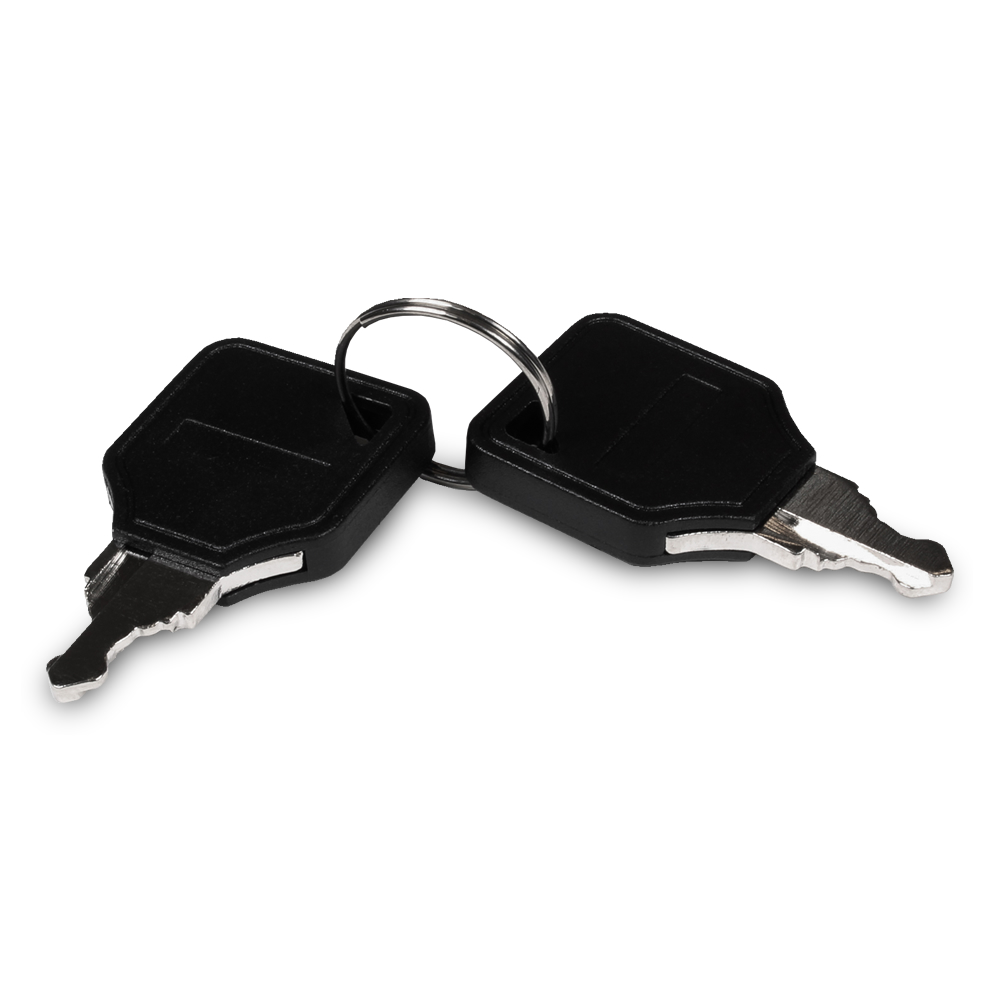

Spare key for KORE AIS Emergency Stop Box.
(MwSt. excl.)
20,00 €
